Trailer Mounted Single Tube Telescopic Telecom Mast for Rapid Deployment

Trailer Mounted Single Tube Telescopic Telecom Mast for Rapid Deployment

Telescopic Tower

Telescopic Tower is an aerial work equipment with a modular telescopic structure. It can flexibly adjust height via hydraulic or electric systems, suitable for multiple scenarios like communication monitoring and emergency rescue. Made of high-strength steel or aluminum alloy, it supports vehicle-mounted trailer-mounted and other mobile methods for quick deployment and storage.

Inquire Now Next Product

Trailer Mounted Single Tube Telescopic Telecom Mast for Rapid Deployment

Mobile Monopole Telescopic Communication Tower for Emergency Network Coverage

Product Description

Product Details
Height	15-30M
Wind Speed	40M/S
Main Material	Steel Tube, Solid rod
Vertical Deviation	<1/1000
Preservative Treatment	Hot Dipped Galvanized and painting

What is the rising state of Telescopic Tower?

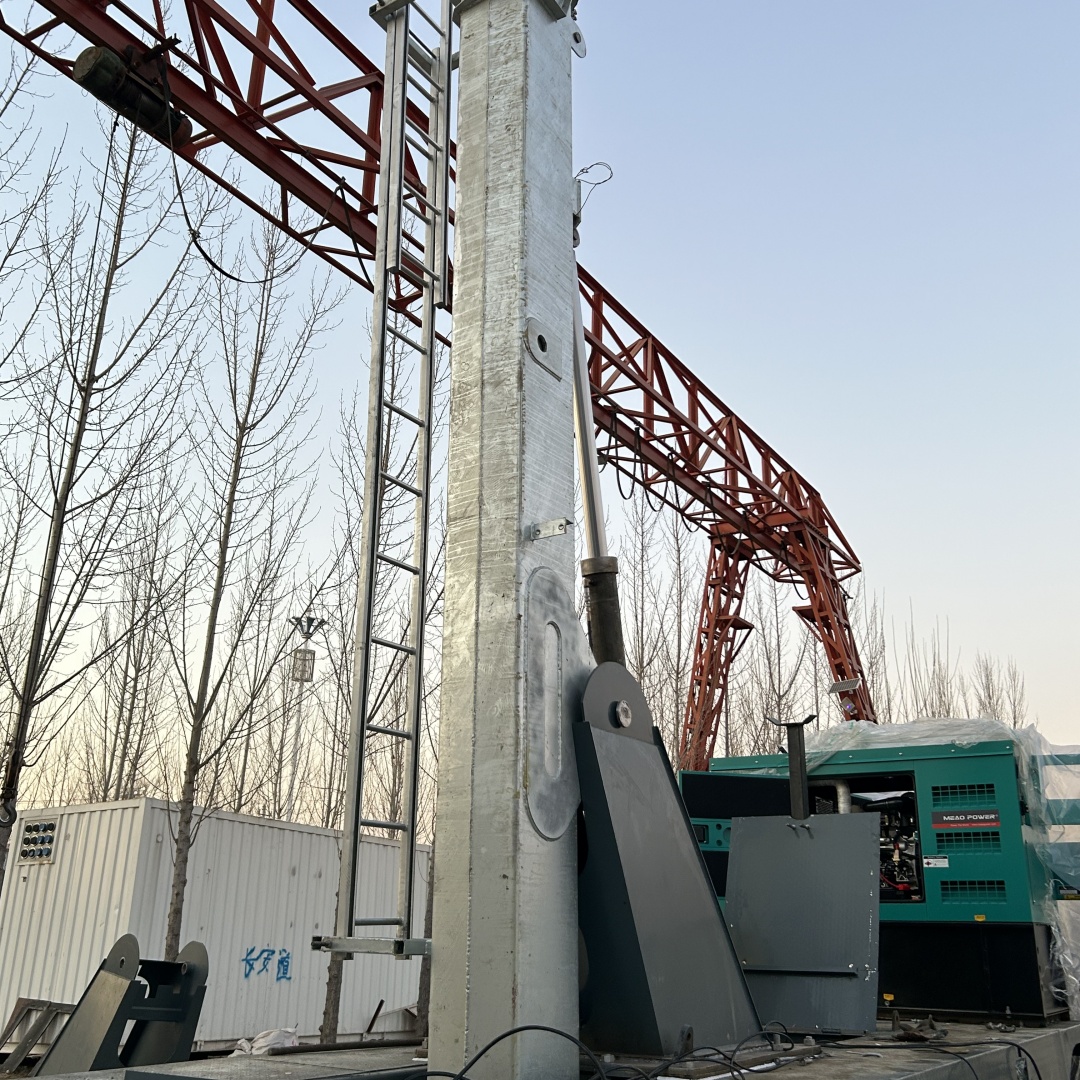

Rising State of Telescopic Tower.The rising state refers to the vertical extension phase, where the telescopic tower deploys its nested sections sequentially using hydraulic or electric actuators. Each section slides outward along precision-guided rails, maintaining structural alignment and load stability. This process is typically controlled via a centralized interface, allowing incremental height adjustment from 6 to 30 meters depending on design. The system incorporates load sensors and anti-tilt mechanisms to ensure safety during ascent. Common applications include mobile communication towers, temporary surveillance platforms, and high-intensity lighting systems deployed at construction or emergency sites.

Telescopic Lattice Tower 15-24M On Wheels Emergency Rescue Monitoring Equipment Low Maintenance 1 Set MOQ

What is the lying down process of Telescopic Tower?

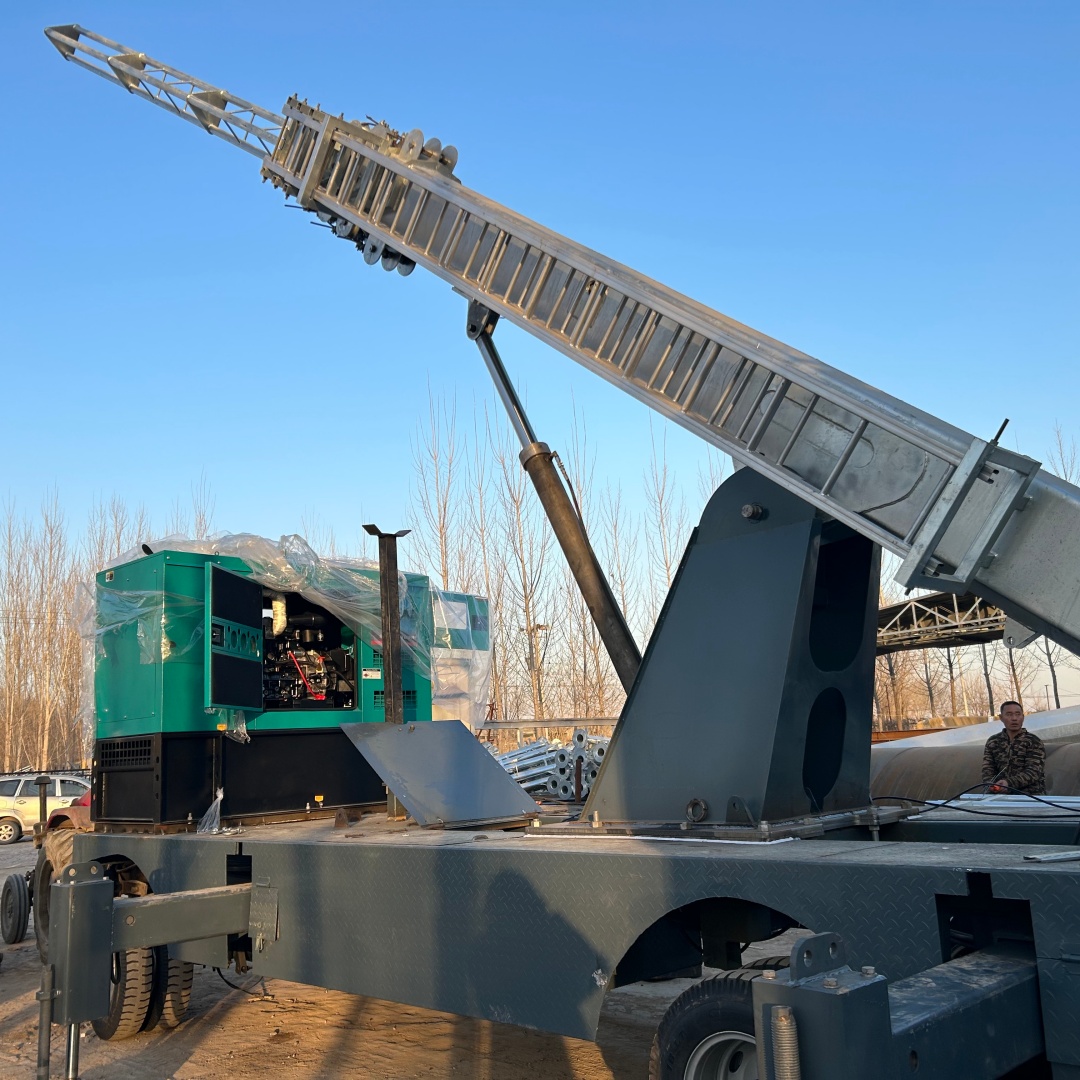

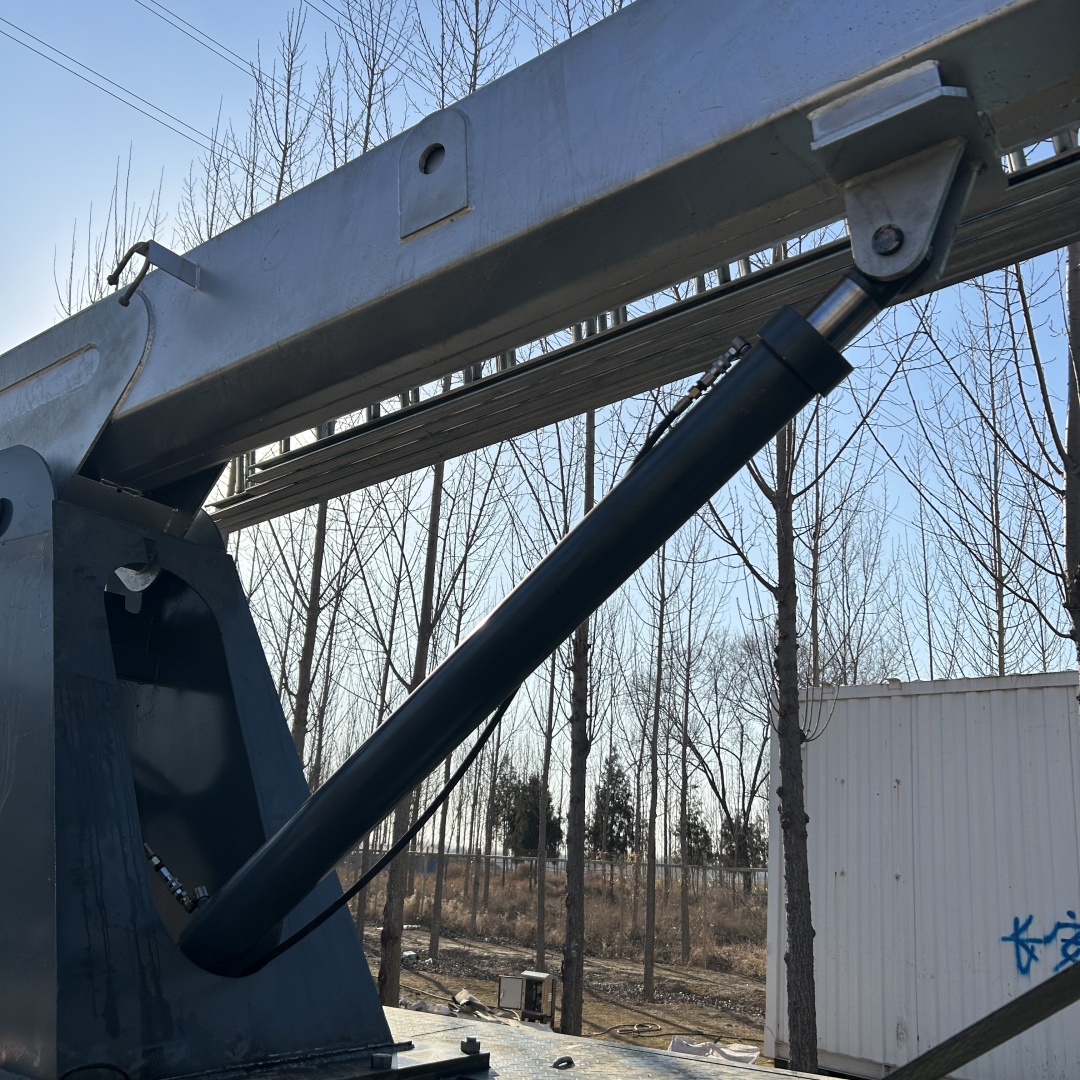

Lying Down Process of Telescopic Tower.The lying down process — more accurately termed stowing to horizontal position — involves rotating the fully retracted or partially extended tower from vertical to horizontal orientation around a pivot point at its base. This is achieved through a hydraulic hinge mechanism that lowers the mast slowly and controllably, often with counterweights to balance torque. The process is critical for transportation, storm preparedness, or storage. Safety interlocks prevent movement unless all sections are fully retracted and locking pins are disengaged. Mobile lighting towers and radar masts commonly employ this feature to reduce wind load and enable trailer transport.

What is the retracting state of Telescopic Tower?

Retracting State of Telescopic Tower.The retracting state is the axial contraction of individual tower sections back into one another, reducing overall height while maintaining vertical alignment. Unlike the lying down process, retraction occurs with the tower still upright. Each section is pulled inward by winches or hydraulic cylinders, guided by telescoping sleeves and secured by mechanical locks at each stage. The sequence is reverse of extension: outermost section retracts first, followed by inner layers. This phase is typically performed before stowing to minimize structural stress and ensure compactness. Retraction is often automated and monitored via position encoders to prevent jamming or misalignment.
