Residential Area Bionic Cypress Tree Low-Visual 5G Camouflaged Tower

Bionic Tree Tower

Residential Area Bionic Cypress Tree Low-Visual 5G Camouflaged Tower

What Is Residential Bionic Cypress Tree Tower?

It is a urban landscape-friendly camouflaged communication tower, which uses a compact hot-dip galvanized steel monopole as the main structure, and is wrapped with a high-simulation cypress tree appearance. It is specially designed for the dense population, high aesthetic requirements and limited space in urban residential areas. It perfectly solves the problem of difficult approval of traditional telecom towers in residential areas, and realizes full 5G signal coverage without affecting the living environment of residents.

Core Structural & Design Features

1. Low-Visual-Impact Design: The high-simulation cypress tree shape is 1:1 restored according to the common garden cypress trees in urban residential areas, with a height range of 10m-30m, which can be perfectly integrated into the community green belts, roadside landscapes and villa gardens, almost invisible as a telecom tower.

2. Compact & Safe Structure: The internal steel structure adopts a compact monopole design, with a small floor space (≤3㎡), which will not occupy the public activity space of the community. Equipped with anti-climbing lockable door at the bottom, internal climbing ladder with fall arrest system, to ensure the safety of residents and maintenance personnel.

3. Low-Noise & Hidden Design: All communication equipment is installed inside the trunk, with sound insulation treatment, which will not generate noise to disturb residents. All cables are hidden inside the tower, no exposed lines, which ensures the tidiness of the community environment.

4. Stable Load Capacity: It can support 2-6 sets of 5G small cell antennas, which can fully meet the signal coverage needs of high-end residential areas and villa communities, with a design wind speed of up to 180km/h, suitable for urban various climate environments.

Key Materials & Compliance Standards

- Main Steel Structure: High-strength Q345B/ASTM A36 steel, raw materials exclusively from HBIS Group, Baowu Steel Group and Shougang Group, with full hot-dip galvanization in accordance with ASTM A123 standard, zinc layer thickness ≥85μm, anti-corrosion and anti-rust.

- Bionic Materials: UV-resistant, weatherproof fiberglass trunk and HDPE cypress leaves, which are non-toxic and tasteless, in line with urban environmental protection standards, and can maintain the simulation effect for more than 5 years.

- Certification & Standards: ISO9001 certified, designed in accordance with TIA-222-G, Chinese GB 50017 steel structure standard, with complete quality certification and test report.

Core Advantages

1. Eliminate Public Resistance: The high-simulation cypress tree shape completely hides the telecom equipment, which eliminates the residents' concerns about "radiation" and "visual pollution", and greatly reduces the difficulty of project approval and community negotiation.

2. Small Floor Space: Compact structure with a floor space of ≤3㎡, which can be installed in the community green belt, roadside, corner and other narrow spaces, without occupying the residents' activity space.

3. Safe & Quiet Operation: Fully enclosed equipment design with sound insulation treatment, no noise disturbance, anti-climbing design to ensure the safety of residents, especially children.

4. Fully Customizable: We can customize the height, appearance, tree shape and antenna load capacity according to the community's landscape style and signal coverage needs, and can also be matched with the community's lighting and monitoring functions.

Application Scenarios

High-end residential areas, villa communities, urban green belts, urban parks, business district street landscapes, and other urban areas with high aesthetic requirements.

Why Choose JiaYao?

As a professional telecom tower manufacturer with 10+ years of experience, our products have been exported to 55+ countries and regions around the world. We provide one-stop customized services for residential bionic tree towers, from CAD design, production to installation guidance, with a minimum order quantity of 1 set, and a conventional delivery time of 20 days.

What Is The Details of JIAYAO Bionic Tree Tower?

What is the height of JIAYAO Bionic Tree Tower we can provide?

5m up to 50m is the tower height we can provide.

How to install the antenna on JIAYAO Bionic Tree Tower?

What antenna can be mounted on JIAYAO Bionic Tree Tower?

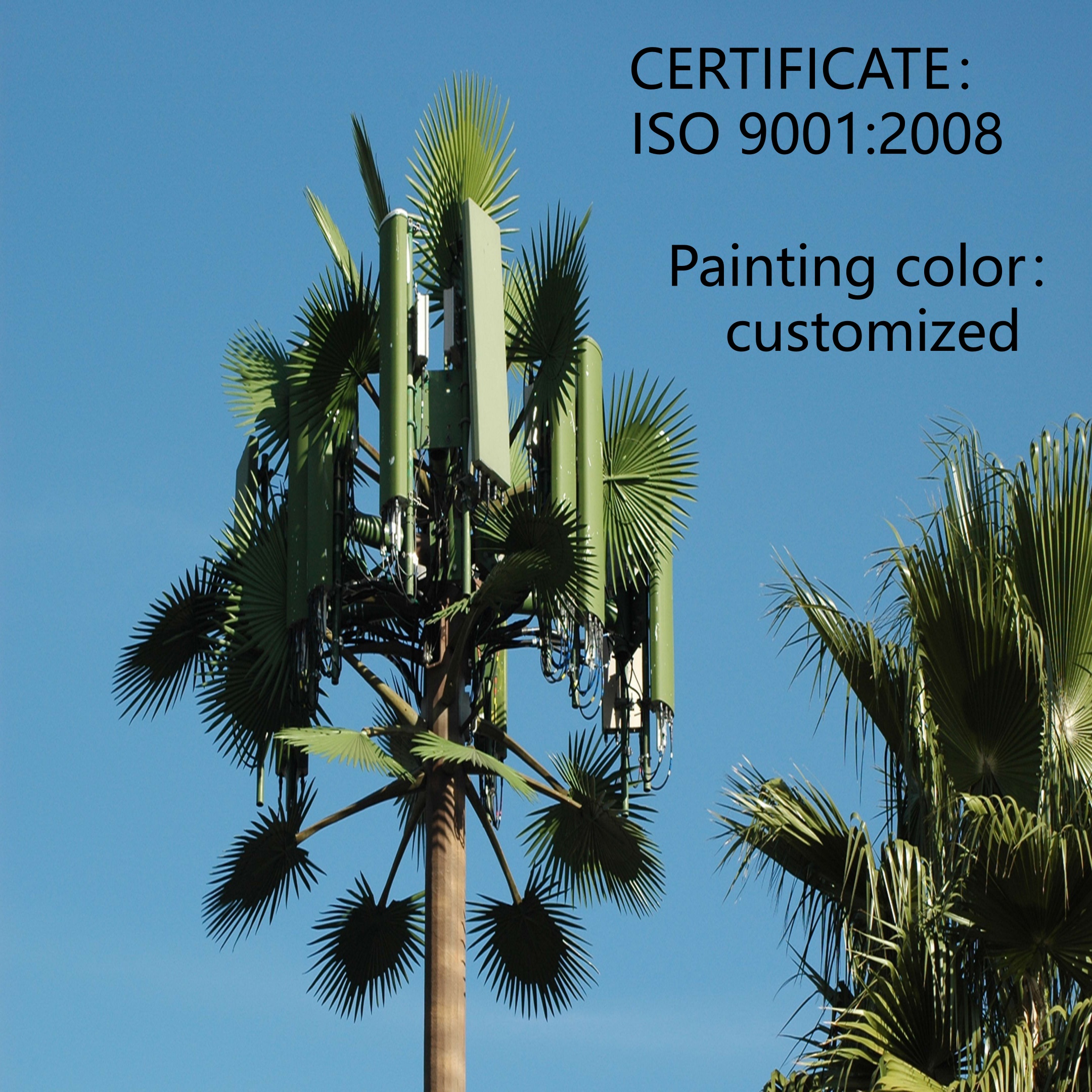

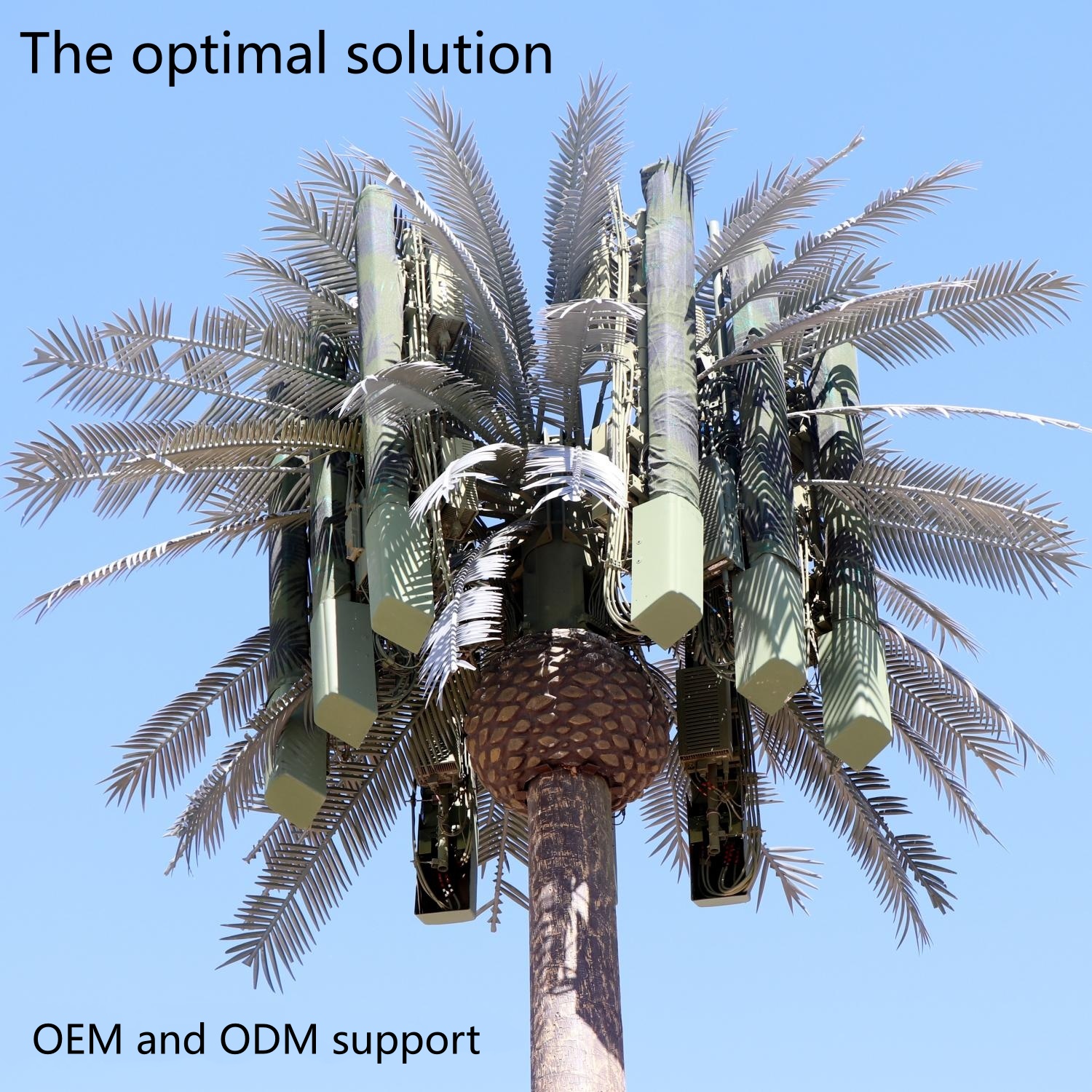

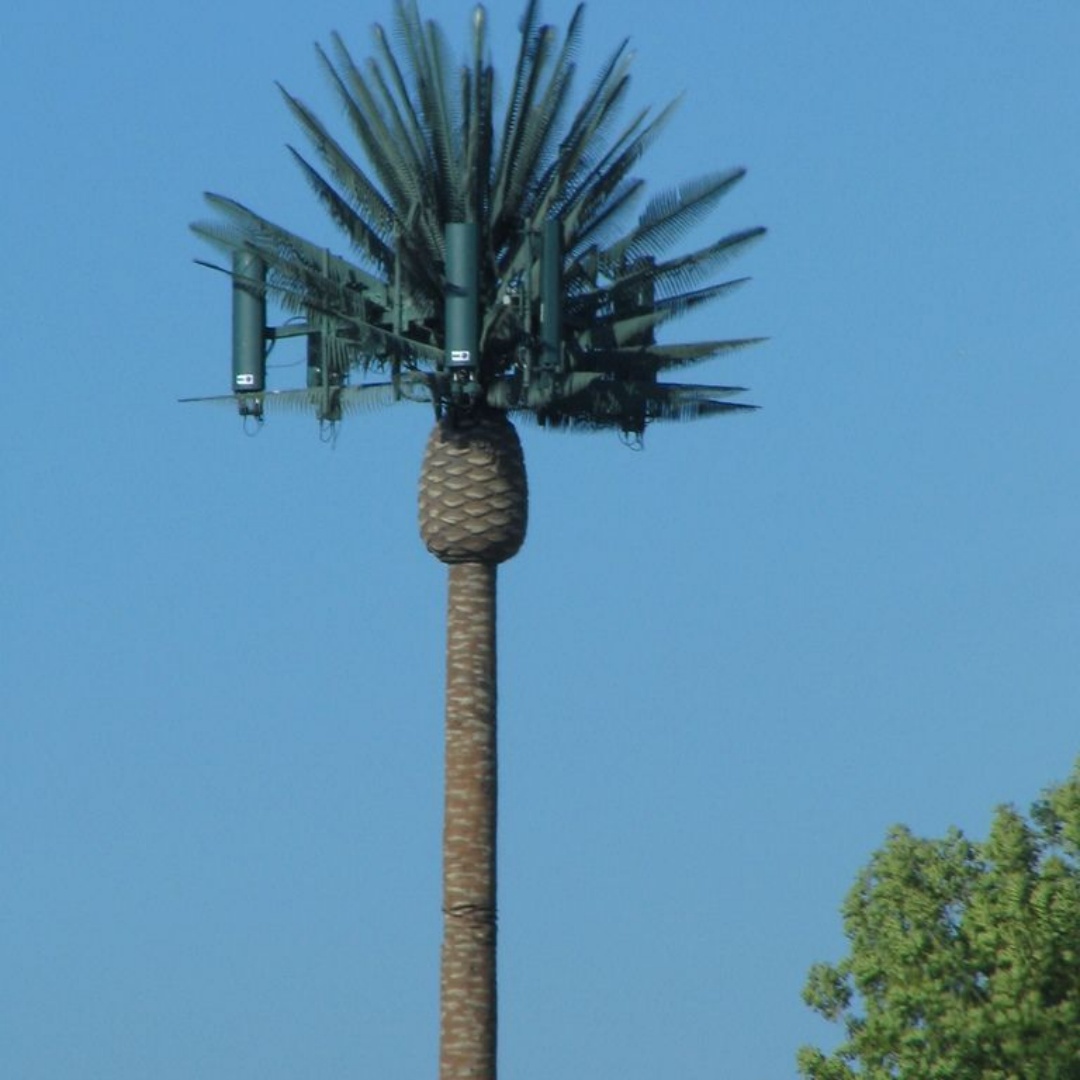

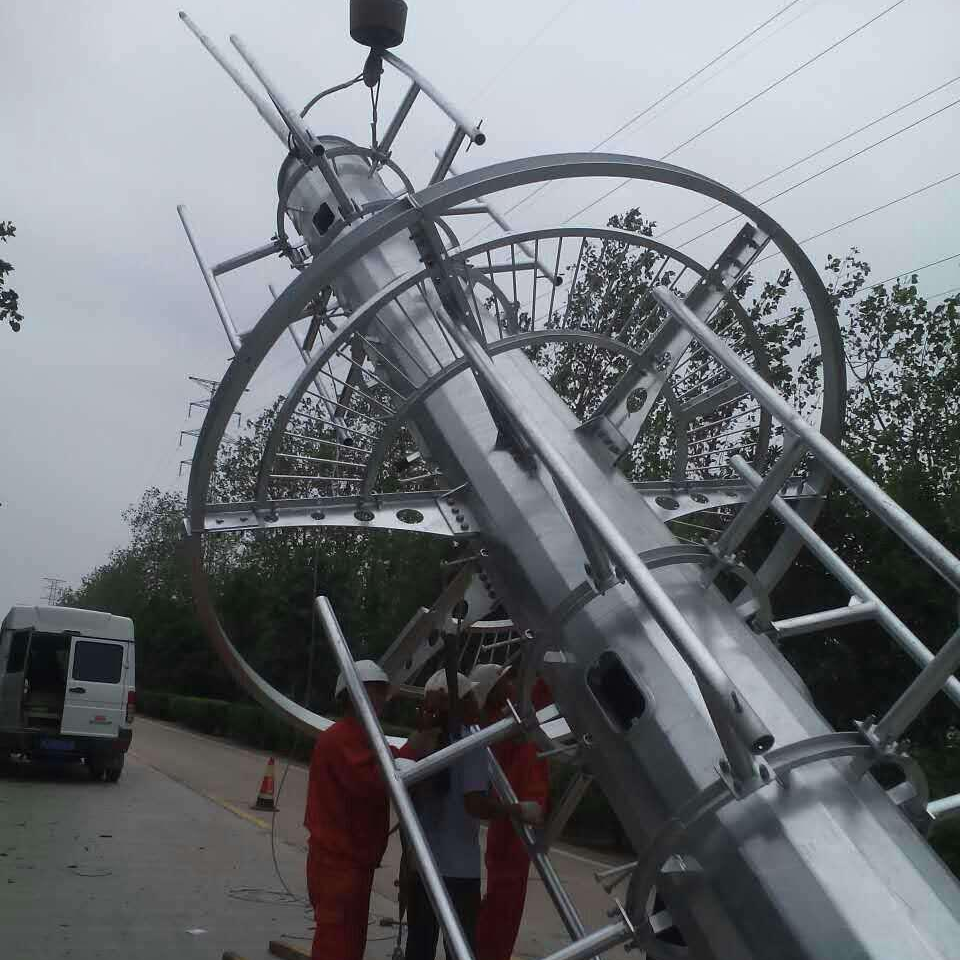

The deailed pictures of JIAYAO Bionic Tree Tower

Why choose us?

10 years

Manufacturing & exporting experience.

Exported to more than 55 countries.

24-hour service throughout the year.

We are committed to providing customers with the most optimized solutions and the competitive prices.

OEM/ODM orders are welcome.We are trying to meet all your needs.

We normally send the towers by sea.

For small orders,the tower can be delivered

Within 15 days.

Material from famous steel mill in China.

How to control the quality by JIAYAO

In order to ensure product quality, we JIAYAO use CNC production equipment and use modern manufacturing technologies to manufacture communication towers, and the multi-item templates, bending dies, jigs and fixtures can be reused in case of repeat orders. We also strive to perfectly complete each small quantity order and proto item production.

The first piece of each different type of template is duly inspected by our specialized Quality Inspectors, thus ensuring accurate and quality manufacturing. The quality of our self supporting communication tower is controlled through sample check during process, and then 100% quality inspection before leaving factory.

Thus, we are confident that all our radio towers are qualified, and users can feel secure in purchasing.
