Four-Legged Lattice Communication Towers: Features & Application Guide

Four-legged lattice communication towers are classic self-supporting steel structures and one of the most widely used products in the telecom industry. Composed of four main steel legs and dense cross bracing, this tower type owns outstanding overall rigidity and heavy load capacity. Manufactured by JiaYao with strict international standards, four-legged lattice towers have been applied in numerous 4G, 5G, microwave and broadcast projects around the world.

This guide mainly elaborates on structural characteristics, core strengths, applicable environments and typical usage scenarios of four-legged lattice communication towers.

1. Basic Structural Features

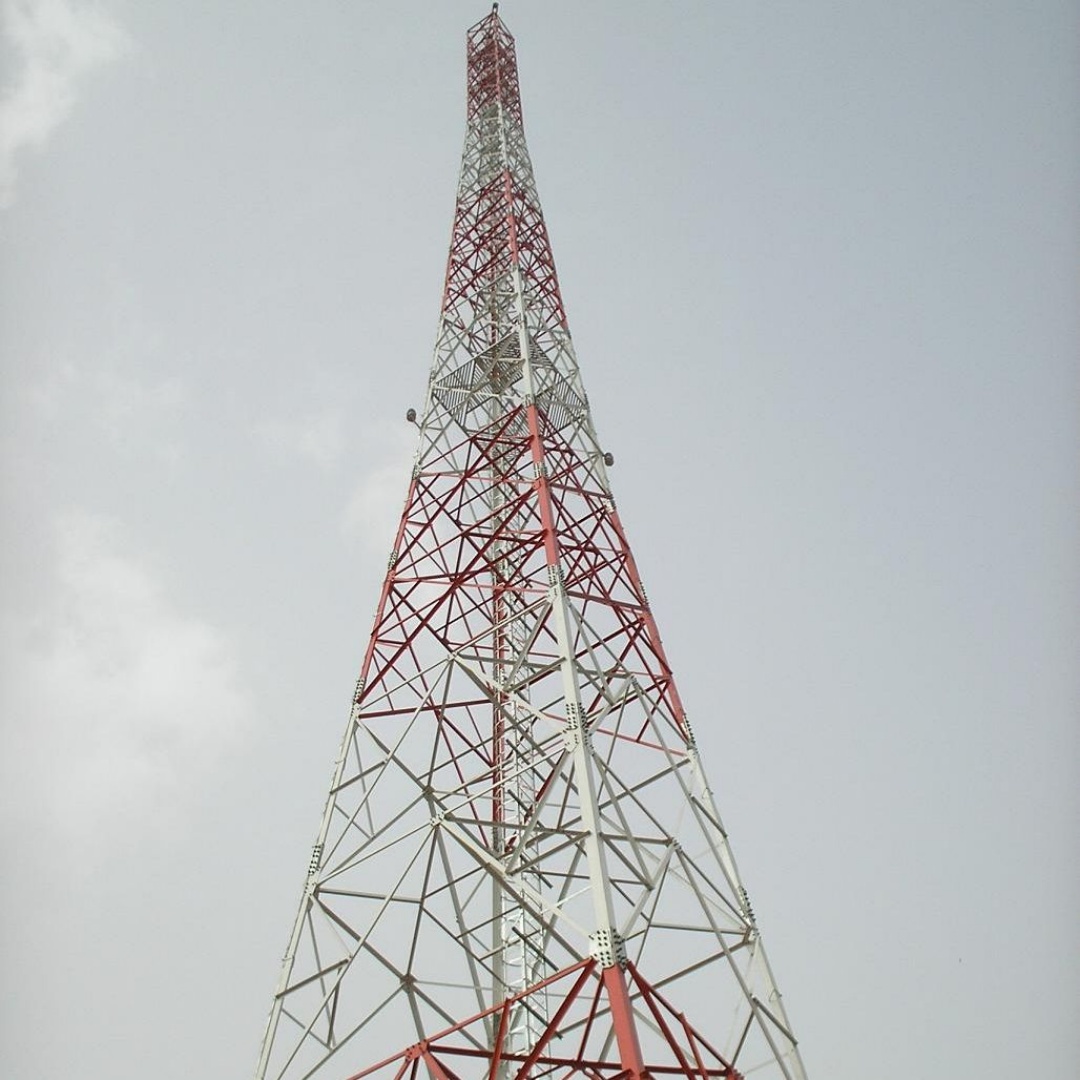

The four-legged lattice tower adopts a square cross-section design. Four vertical main legs are connected by horizontal and diagonal bracings to form a stable truss system. Most components are made of hot-dip galvanized angle steel, assembled by high-strength bolts without on-site welding.

        Standard height range: 20m to 100m, supporting customized height according to project demands.

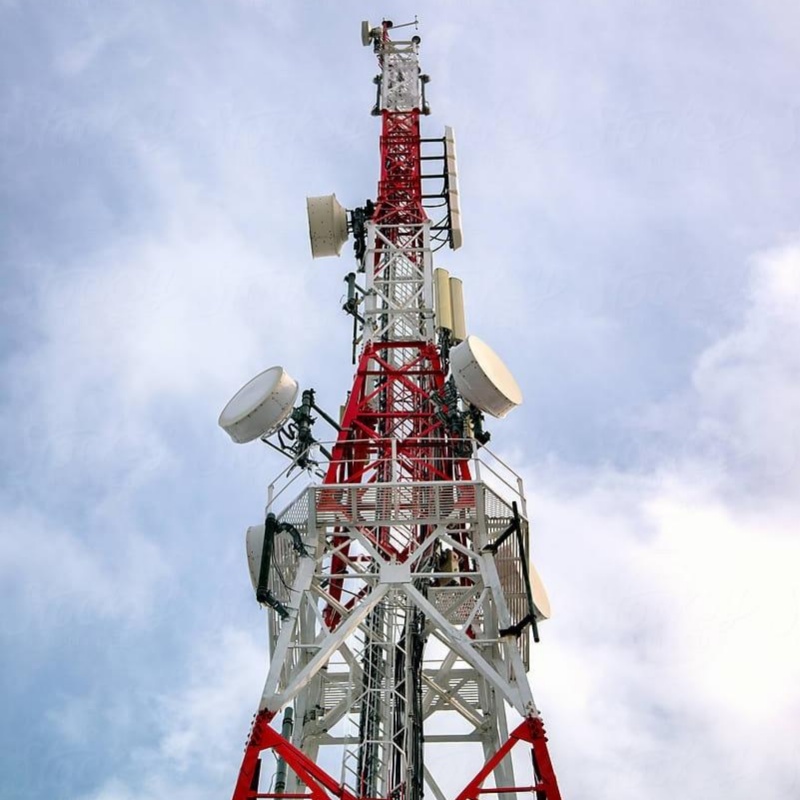

        Multi-layer crossarms and mounting platforms are reserved, which can carry a large number of antennas, microwave dishes and auxiliary equipment.

        The base area is reasonably enlarged to enhance anti-overturning performance, suitable for long-term fixed deployment.

        All metal parts are processed by hot dip galvanizing to achieve long-term anti-corrosion effect.

2. Core Advantages

High Structural Stability

The four-point support structure greatly improves overall rigidity. It can resist strong wind, ice load and seismic impact, performing excellently in typhoon zones, cold high-altitude areas and earthquake-prone regions.

Super Load-Bearing Capacity

Compared with monopole and tri-tubular towers, four-legged lattice towers can bear heavier communication equipment. It is capable of supporting multiple sets of macro antennas, microwave transmission devices and monitoring facilities at the same time.

Mature & Cost-Effective Design

Angle steel materials are easy to process, transport and install. Modular segmented design adapts to various transportation conditions, even in remote mountainous areas. For large-scale network construction, it has obvious comprehensive cost advantages.

Long Service Life

Compliant with ASTM A123 and ISO 1461 galvanizing standards, the tower can maintain stable performance for more than 30 years under normal outdoor conditions, with low daily maintenance frequency.

Strong Expandability

The reserved mounting positions and platforms allow users to add new communication equipment later, which fully meets the needs of network iteration and upgrading from 4G to 5G and future communication technologies.
