Mobile
& temporary telecom towers are a category of rapidly deployable,
portable communication infrastructure, and a core product line in
JiaYao’s full solution portfolio. Unlike fixed lattice or monopole
towers built for permanent long-term use, these specialized solutions
prioritize mobility, ultra-fast deployment, and plug-and-play
functionality, designed to deliver instant, reliable connectivity in
scenarios where permanent telecom infrastructure is impractical,
unavailable, or damaged. As a leading manufacturer with over 10 years of
industry experience, JiaYao’s mobile temporary tower solutions are
exported to 55+ countries and regions worldwide, trusted by telecom
operators, emergency response agencies, and event organizers for their
robust performance and customizable design.
Within
JiaYao’s product range, mobile & temporary telecom towers are
divided into four core sub-types, each engineered for specific use
cases, with distinct design features, deployment speed, load capacities,
and environmental adaptability. This guide breaks down the detailed
specifications, real-world applications, and selection best practices
for each variant, helping project teams choose the optimal solution for
their temporary connectivity needs.

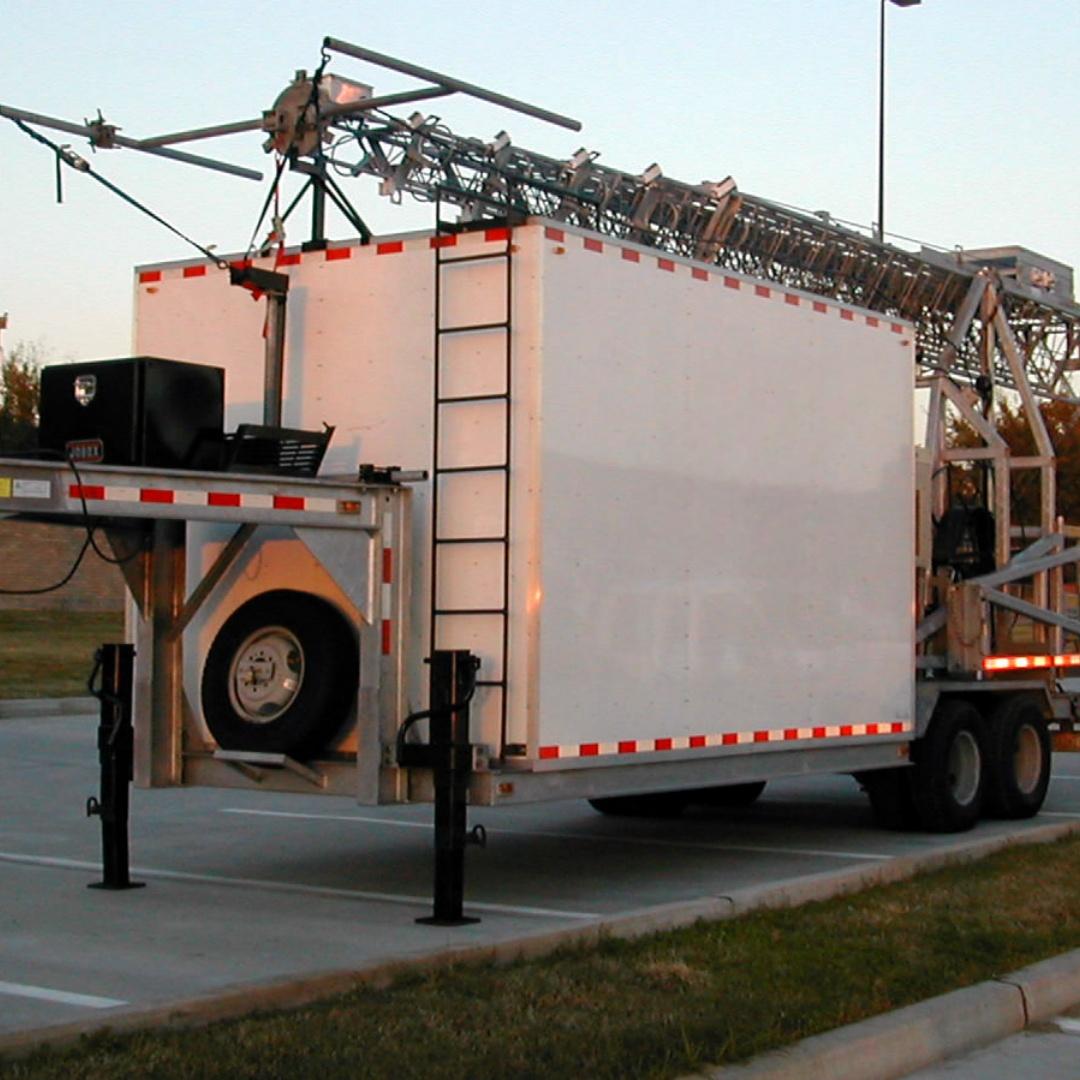

The
Cell on Wheels (COW), also known as a trailer-mounted telescopic tower,
is the most widely used mobile telecom solution, and the flagship
product in JiaYao’s temporary tower portfolio. It integrates a
telescopic mast, dedicated equipment cabin, and backup power system onto
a heavy-duty road-legal trailer, enabling fully mobile, self-contained
communication deployment.
Core Structural & Performance Features:
Telescopic Mast Design: Available in two variants:
tubular telescopic mast (max height 25m) and lattice telescopic mast
(max height 30m), with adjustable height to match coverage needs. The
mast is made of high-strength seamless steel tube, with a vertical
deviation of <1/1000 of total height, compliant with global telecom
tower safety standards.
Fully Integrated System: Equipped with a lockable,
weatherproof equipment cabin that houses BTS equipment, power
distribution units, and climate control systems; optional built-in
diesel generator or solar power system enables off-grid operation
without external power supply.
Ultra-Fast Deployment: Can be fully deployed,
raised, and put into operation in 1–2 hours by a 2-person team, with no
heavy cranes or on-site construction required. The trailer features
hydraulic stabilizer jacks for stable operation on uneven ground.
Environmental Resistance: Designed to withstand
wind speeds up to 40m/s, with all steel components hot-dip galvanized
per ASTM A123 standards for corrosion resistance, delivering a 30+ year
service life.
Primary Application Scenarios:
Emergency disaster response (earthquakes, floods, hurricanes),
large-scale public events (concerts, sports tournaments, festivals),
temporary construction site connectivity, and short-term rural network
expansion.
Telescopic Lattice Tower Self Supporting 15-30M Lighting Mast Weather Resistant 30 Years Service Life

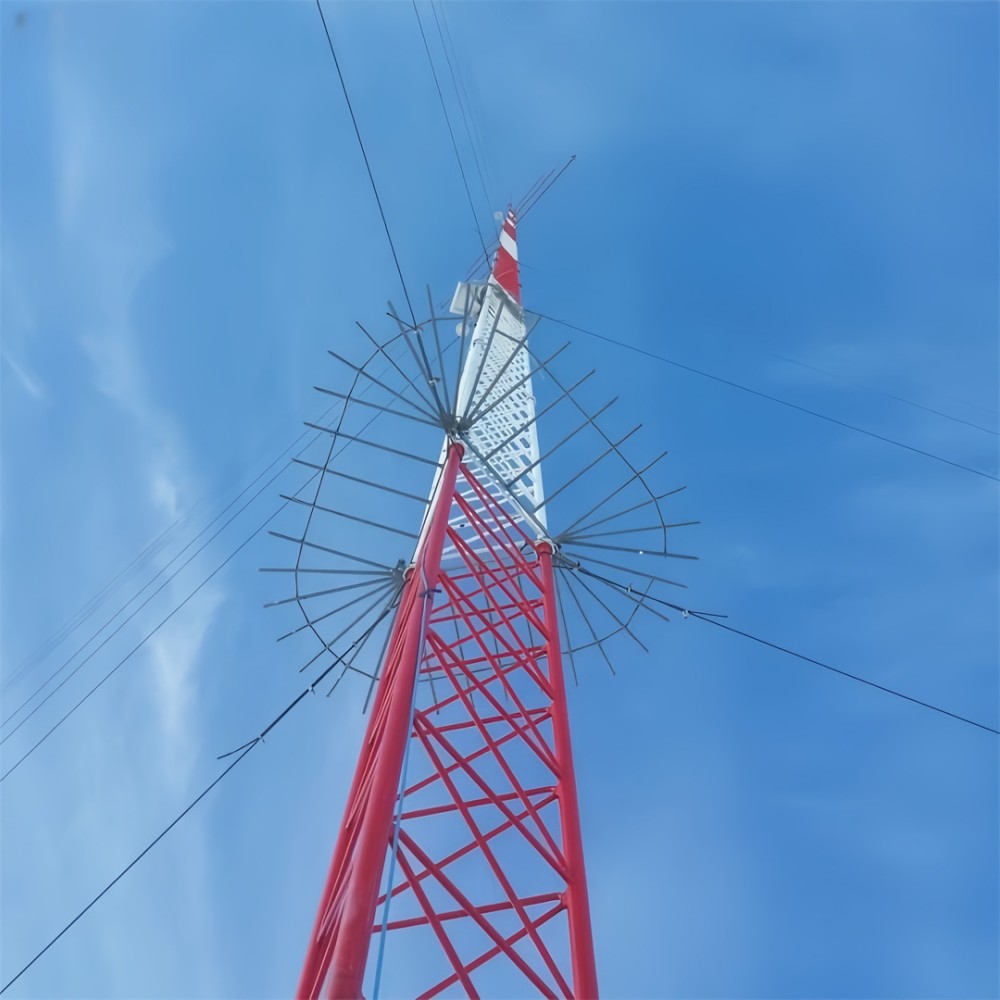

The portable guyed temporary tower is a lightweight, man-portable solution designed for deployment in remote areas with no vehicle access. Unlike trailer-mounted COWs, this variant is made of segmented, steel or aluminum components that can be carried and assembled without heavy machinery.
Core Structural & Performance Features:
Lightweight Design: Each mast segment weighs ≤25kg, making it easy to transport by pickup truck, helicopter. The standard height range is 10m–30m, customizable based on project needs.
Stable Guyed Stabilization: Uses 3–4 layers of high-tensile galvanized steel guy wires anchored to portable ground anchors or weighted bases, with no permanent concrete foundation required. Full assembly and deployment can be completed in 2–4 hours by a 2–3 person team.
Material Options: Available in two material variants: hot-dip galvanized carbon steel (for heavy load needs) and 6061-T6 aviation-grade aluminum alloy (for ultra-portable needs), both compliant with ISO 9001 quality standards.
Load Capacity: Supports 2–4 standard 5G small cell antennas or emergency radio equipment, with a max load capacity of 200kg–800kg, suitable for remote temporary communication needs.
Primary Application Scenarios: scientific expeditions in polar or mountainous regions, and post-disaster areas with damaged road access.
Guyed Wire Broadcast Tower Corrosion Proof Steel 55m Signal Coastal Regions Durable
The
rooftop temporary monopole tower is a compact, lightweight solution
engineered for short-term urban signal densification, designed for
installation on the rooftops of mid-rise and high-rise buildings without
permanent structural modifications.
Core Structural & Performance Features:
Non-Penetrating Design: Uses a weighted base (water
tanks, concrete blocks) or clamp-on mounting system that attaches to
the building’s structural columns, with no roof penetration or permanent
welding required, eliminating damage to the building’s waterproof layer
and structure.
Compact & Lightweight Build: Standard height
range is 5m–15m, with a total weight of 500kg–1500kg, engineered to
distribute load evenly across the building’s load-bearing structure,
compliant with global building safety codes.
Rapid Urban Deployment: Full assembly and
installation can be completed in 4–8 hours, with minimal disruption to
building occupants, making it ideal for short-term urban signal needs.
Low Visual Impact: Sleek tapered monopole design,
customizable paint color to match the building’s exterior, with all
cables hidden inside the mast to avoid visual clutter.
Primary Application Scenarios:
Temporary event coverage in dense urban areas, short-term 5G network
densification for business districts, emergency urban signal restoration
after grid outages, and temporary private network deployment for
construction projects.
30m 35m 40m Galvanized 4g /5g Cell Sites Phone Signal Microwave Monopole CommunicationTower
The
containerized integrated mobile telecom tower is a heavy-duty,
long-term temporary solution that integrates a telescopic mast, full
equipment room, and power system into a standard 20ft or 40ft shipping
container. It is designed for semi-permanent deployment in remote, harsh
environments where long-term temporary connectivity is required.
Core Structural & Performance Features:
All-In-One Containerized Design: The entire system
is pre-integrated into a standard ISO shipping container, with a
telescopic mast that folds into the container during transportation, and
can be raised to a height of 15m–30m on-site.
Fully Self-Contained System: Built-in equipment
room with air conditioning, power distribution, backup generator, and
fire suppression systems, enabling plug-and-play operation immediately
after arrival on site, with full deployment completed in 2–4 hours.
Harsh Environment Adaptability: Reinforced
container structure with marine-grade anti-corrosion coating, designed
to withstand extreme temperatures (-40℃ to 70℃), high winds, and
sandstorms, suitable for long-term deployment in remote areas.
High Load Capacity: Supports 6–12 5G antennas,
microwave equipment, and monitoring systems, with optional integrated
solar power system for fully off-grid operation.
Primary Application Scenarios:
Remote oil and gas fields, mining operations, long-term border security
outposts, military field command posts, and semi-permanent rural
network deployment.
All
JiaYao mobile & temporary telecom towers are built to strict global
quality standards, with full in-house control over every stage of
production:
As
global demand for rapid, flexible connectivity grows, mobile &
temporary telecom towers have become an indispensable part of modern
communication infrastructure. Whether for emergency disaster response,
large-scale events, or remote area network expansion, JiaYao’s full
range of mobile temporary tower solutions deliver reliable,
customizable, and cost-effective connectivity for every scenario.
