A
monopole telecom tower, also known as a single-pole tower or monopole
mast, is a compact, self-supporting tapered steel structure that serves
as one of the most widely used infrastructure solutions in JiaYao’s core
product portfolio. Unlike lattice towers with multi-leg frames,
monopole towers feature a single cylindrical or polygonal steel shaft,
delivering unrivaled space efficiency and low visual impact—making them
the preferred choice for urban 5G deployment, suburban coverage, and
aesthetic-sensitive projects. As global 5G network expansion
accelerates, monopole towers have become the industry standard for dense
urban communication deployment, with JiaYao’s customized solutions
exported to over 55 countries and regions worldwide.
Within
JiaYao’s product line, monopole towers are divided into four core
sub-types, each engineered for specific project scenarios, with distinct
design features, load capacities, and application ranges. This guide
breaks down the detailed specifications, use cases, and selection logic
of each monopole variant, helping project teams choose the optimal
solution for their communication infrastructure needs.

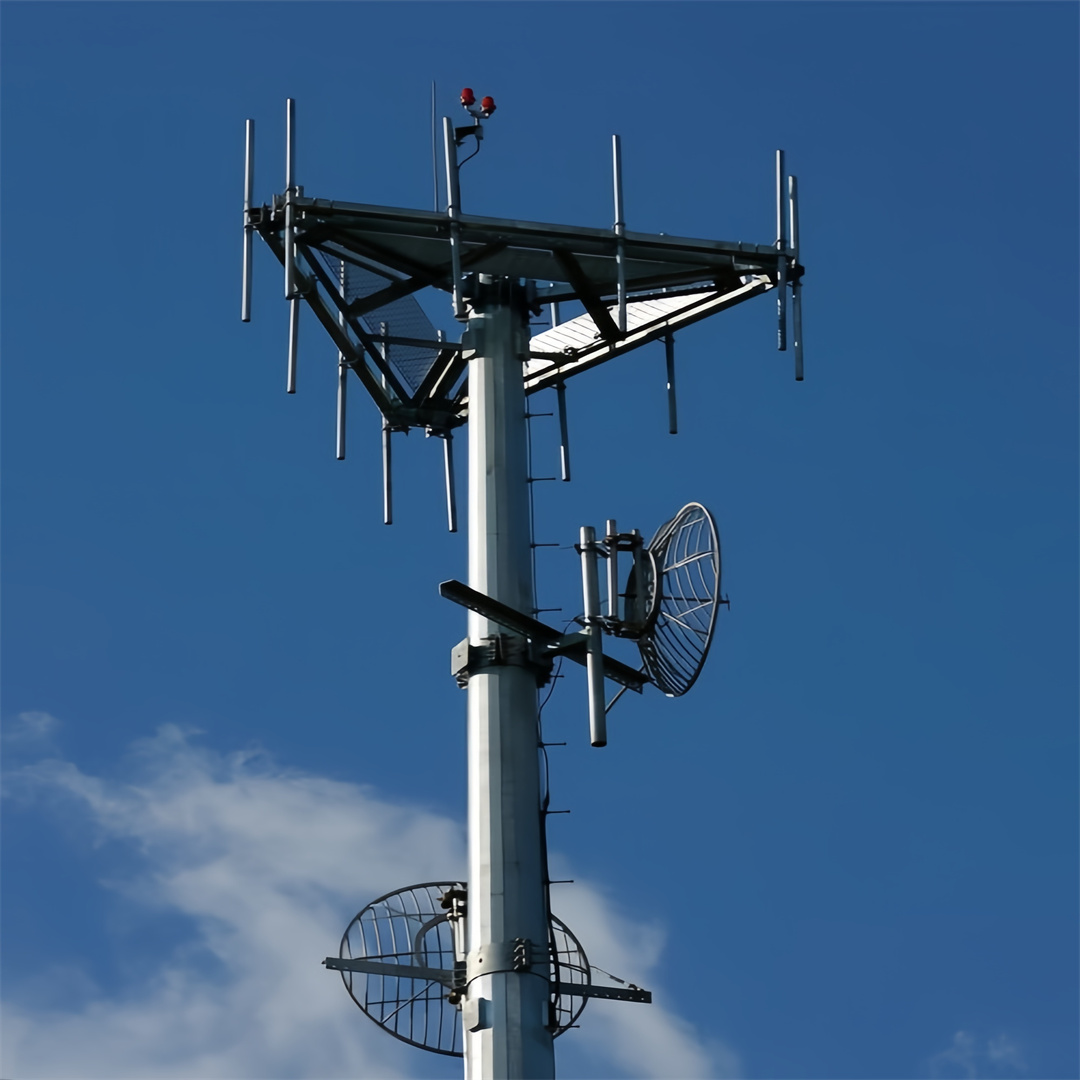

The
urban landscape monopole tower is the most mainstream variant, designed
for dense urban 5G deployment and suburban communication coverage. It
features a tapered polygonal (12-sided or 16-sided) steel shaft, with a
typical height range of 20m to 40m. The shaft is designed with a smooth,
streamlined appearance, customizable paint colors to match urban
streetscapes, and an integrated cable management system to hide all
feeders and wires inside the pole—eliminating exposed cables and visual
clutter.
Key
features include pre-installed antenna mounting brackets for 4-8 5G

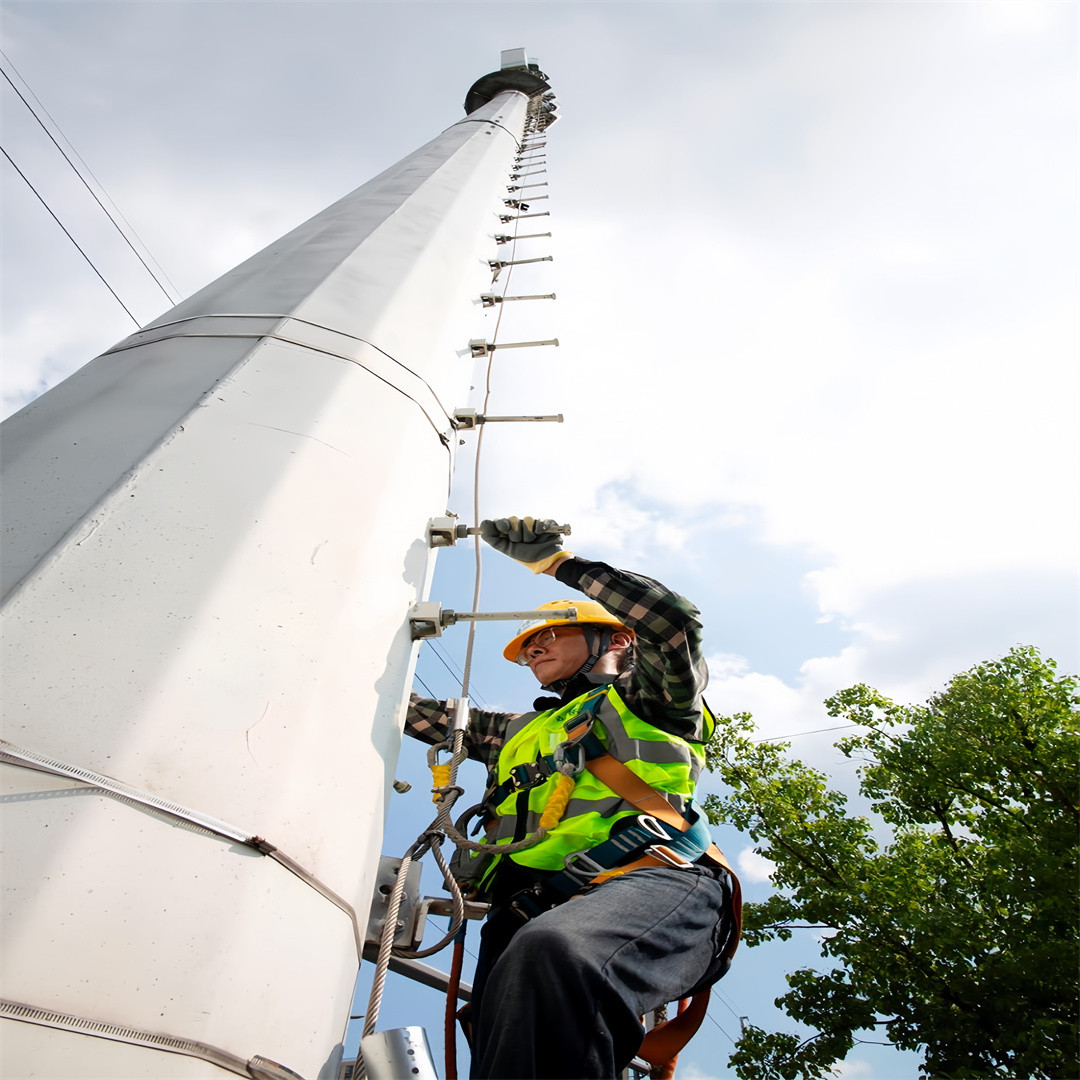

small cells or macro antennas, an internal climbing ladder with a
fall-arrest system, and a lockable equipment cabinet at the base. Its
small base footprint (≤2㎡) allows it to be installed in urban sidewalks,
street medians, park green belts, and other narrow public spaces,
making it the ideal solution for urban 5G network densification.
20m-50m Hot Dip Galvanized Steel Self Supporting Single Pole Antenna Telecom High Mast Monopole Communication Steel Tower
The
rooftop monopole tower is a lightweight, compact variant specially
engineered for installation on the rooftops of mid-rise and high-rise
buildings, addressing the critical challenge of urban 5G site selection
where ground space is unavailable. With a typical height range of 5m to
15m, this variant uses a lightweight tapered steel shaft, with a total
weight of 500kg to 1500kg, designed to distribute load evenly across the
building’s structural columns without overloading rooftop slabs.
Key
features include a reinforced base flange with adjustable anchor points
to match different building roof structures, a compact design that
avoids interference with rooftop HVAC systems and drainage, and a
customizable appearance that can be painted to match the building’s
exterior. It supports 2-6 5G small cell antennas, making it the perfect
solution for filling urban signal dead zones in dense commercial and
residential areas.

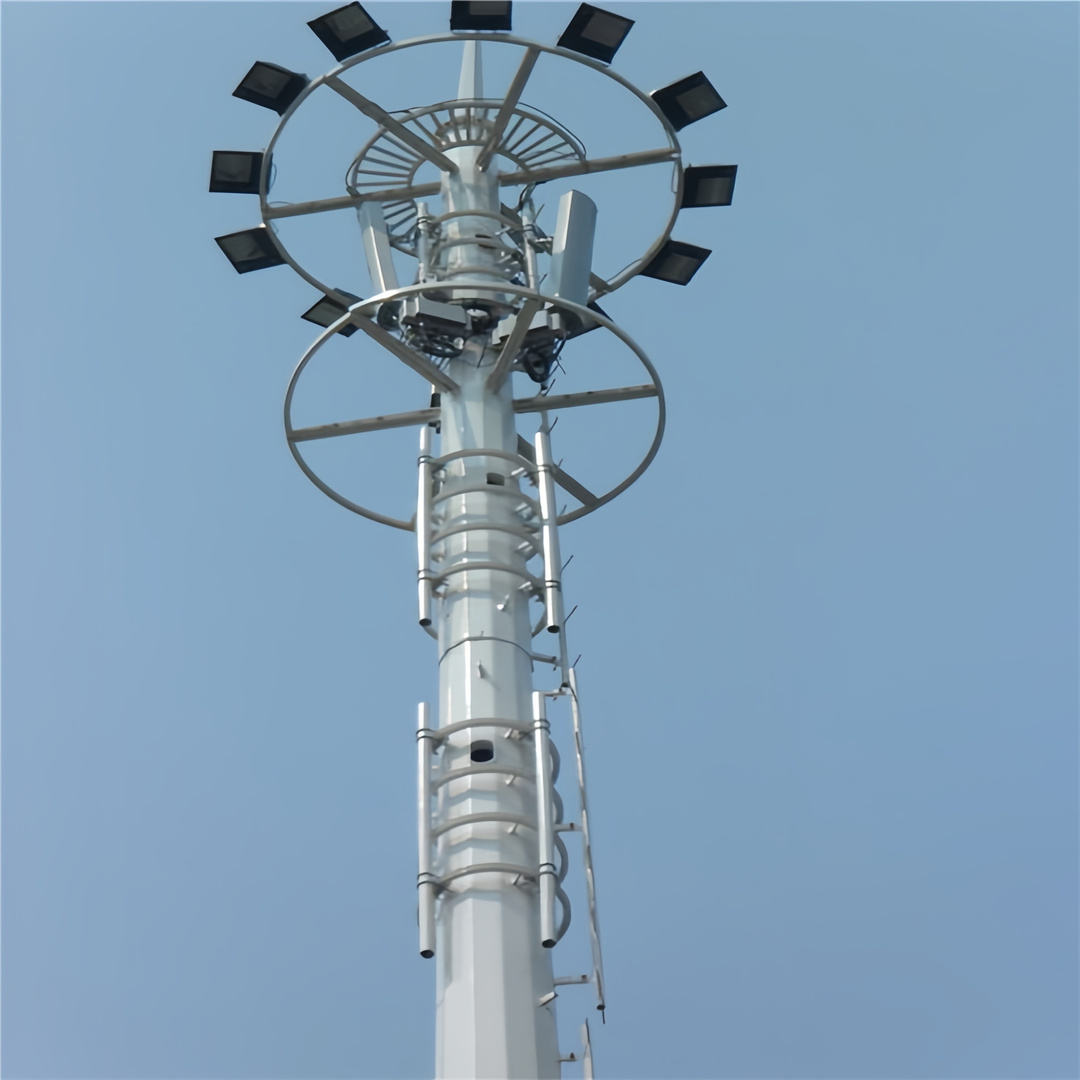

The
high-mast integrated monopole tower is a multi-functional variant that
combines communication support with high-intensity outdoor lighting,
designed for urban public spaces, highways, ports, and logistics hubs.
With a typical height range of 15m to 30m, this variant integrates 5G
antenna mounts, traffic monitoring camera brackets, and high-brightness
LED floodlight fixtures into a single pole, realizing the "one pole for
multiple uses" concept for smart city infrastructure.
Key
features include a modular top platform that can accommodate both
communication equipment and lighting fixtures, an internal power and
signal cable management system, and a corrosion-resistant design
suitable for outdoor long-term use. It eliminates the need for separate
construction of communication poles, light poles, and monitoring poles,
reducing urban street clutter and saving 40% of comprehensive municipal
construction costs.
30m 35m 40m Galvanized 4g /5g Cell Sites Phone Signal Microwave Monopole CommunicationTower

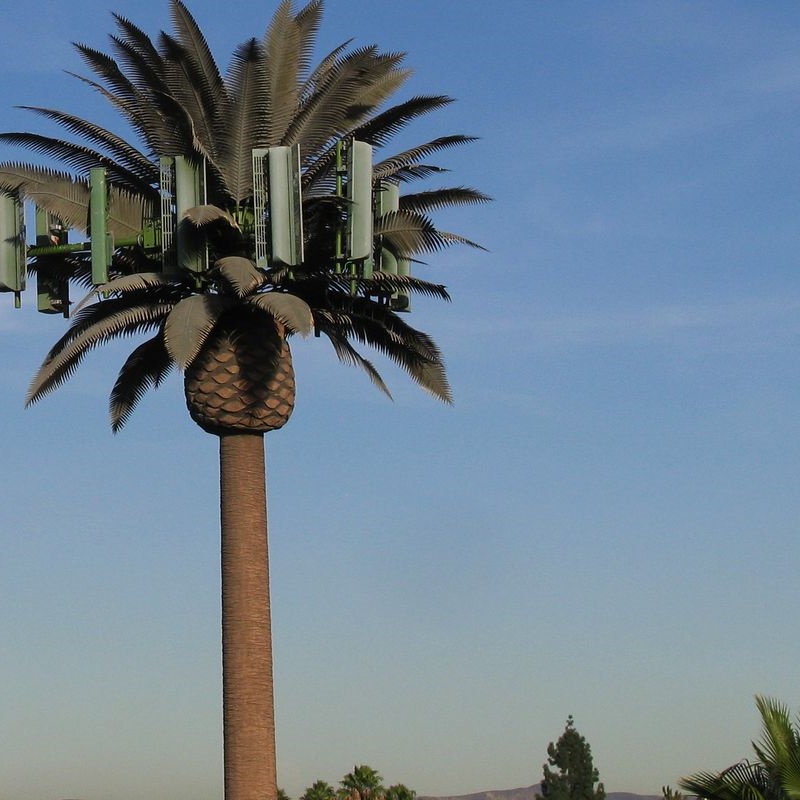

The
camouflaged bionic monopole tower is an aesthetic-focused variant that
forms the base of JiaYao’s bionic tree tower product line. It uses a
monopole steel shaft as the internal load-bearing structure, wrapped in a
high-simulation bionic tree trunk, branches, and foliage to disguise
the communication equipment. Typical height ranges from 15m to 45m, with
customizable bionic designs including pine trees, palm trees, cypress
trees, and other local plant species.
Key
features include a fully hidden design that conceals all antennas and
cables inside the bionic trunk and canopy, UV-resistant fiberglass and
HDPE bionic materials that maintain color fastness for over 5 years, and
the same load-bearing performance as standard monopole towers. It is
ideal for scenic areas, high-end residential communities, golf courses,
and world heritage sites, where landscape protection and public
acceptance are top priorities.
Camouflaged Bionic Palm Tree 5G Telecom Tower
