The height requirement for an effective cell tower depends on several factors, including the topography of the area, the type of technology being used, the frequency bands being utilized, and the desired coverage area. While it is difficult to provide an exact answer, I will explain the key considerations that determine the height of a cell tower and its effectiveness.
Line of Sight and Obstacles: One of the primary considerations for cell tower height is maintaining a clear line of sight between the tower and the user's device. In general, higher tower heights help overcome obstacles such as buildings, trees, and geographical features that could obstruct the signal. Taller towers are especially important in areas with significant elevation changes or dense urban environments.

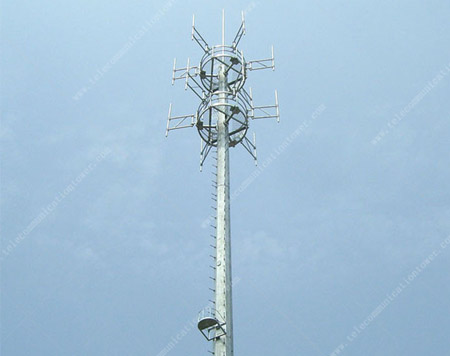

4G Antenna Wife Telecom Eight Sides Powder Painted Cell Tower
Signal Range and Coverage Area: The height of a cell tower plays a crucial role in determining its signal range and coverage area. Higher towers can transmit signals over longer distances, covering a larger area. This is particularly important in rural or sparsely populated areas where a single tower needs to cover a wide geographic region.
Frequency Bands and Propagation: Different frequency bands have different propagation characteristics. Lower-frequency bands, such as the sub-1 GHz range, can propagate over longer distances and penetrate obstacles better than higher-frequency bands like 2.4 GHz or 5 GHz. Therefore, towers transmitting higher-frequency bands may need to be placed at shorter distances and potentially at greater heights to achieve similar coverage.
Capacity and Network Congestion: In densely populated areas with high user demand, multiple cell towers are often deployed in close proximity to accommodate the increased capacity requirements. In such cases, tower heights may be optimized to avoid interference between neighboring towers and to ensure efficient coverage for the targeted user base.

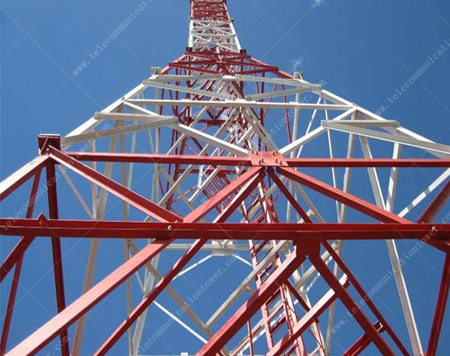

Steel Telecommunication Bts Antenna A572 Steel Wifi Cell Tower
Antenna Characteristics: The design and specifications of the antennas used in a cell tower also influence the tower's effective height. Antennas can have different radiation patterns, gains, and beam widths, which determine the signal coverage area and directionality. Antenna placement on the tower, including its height, tilt, and azimuth, can significantly affect signal distribution and coverage.
Regulatory and Zoning Requirements: Cell tower height can also be influenced by local regulations and zoning laws. Some municipalities have restrictions on the maximum height of structures, including cell towers, for aesthetic or safety reasons. Compliance with these regulations may require tower heights to be limited, potentially affecting the effectiveness of the network coverage in those areas.
It's important to note that there is no universally prescribed height for all cell towers. Each deployment is unique and requires careful planning and engineering to meet the specific requirements of the network operator and the local environment.
In conclusion, the height of a cell tower is a crucial factor in determining its effectiveness. While there is no fixed height that applies to all situations, taller towers generally provide better coverage, overcome obstacles, and extend the signal range. However, various considerations, such as line of sight, frequency bands, propagation characteristics, capacity requirements, antenna design, and regulatory restrictions, must be taken into account to determine the optimal height for a cell tower in a particular location.
