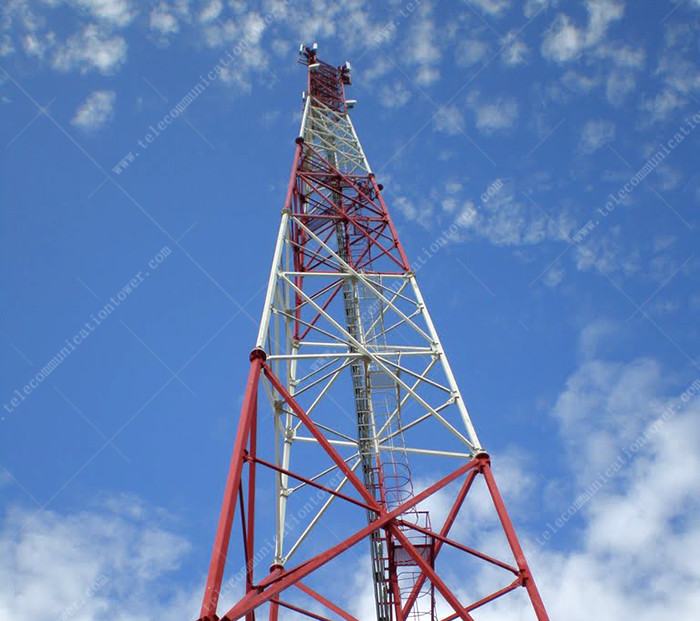

Hot Dip Galvanized Three Legs Telecom Tower
Hot Dip Galvanized Three Legs Telecom TowerHot Dip Galvanized Three Legs Telecom TowerHot Dip Galvanized Three Legs Telecom TowerHot Dip Galvanized Three Legs Telecom TowerHot Dip Galvanized Three Legs Telecom Tower
Hot Dip Galvanized Three Legs Telecom TowerHot Dip Galvanized Three Legs Telecom TowerHot Dip Galvanized Three Legs Telecom TowerHot Dip Galvanized Three Legs Telecom TowerHot Dip Galvanized Three Legs Telecom Tower

Hot Dip Galvanized Three Legs Telecom Tower

3 Legged Tubular Steel Tower

Mast Antenna Shelter Telecom Wifi Tower



Product Description
Our company is a professional steel tower manufacturer with ISO certificates based in China.
Supported by the team of professional engineers,technicians,skill workers,we are dedicated to providing our global customers with high quality telecom towers.
The detailed information is specified in the following table.We sincerely look forward to cooperating with you.
1.key Details:
Place of Origin: Hebei, China (Mainland) ; Brand Name: Jaoyao or OEM ; Model Number: Telecom Tower.
Surface treatment: Hot Dip Galvanizied or painted.
2.Packaging & Delivery:
Packaging Details: Telecom tower will be bundled by Galvanized strapping as per client's requirements.
Deliver:Shipped in 20 days after payment from Tianjin port.
Tower members: One steel tower is separated into several bundles.
Bolts: Packing material is robust nylon bag or steel drum.
3. Technical Data
Design
1. Design CodeTIA/EIA-222-G/F
Structure Steel
2. GradeMild SteelHigh Tensile Steel
GB/T 700:Q235B, Q235C,Q235DGB/T1591:Q345B, Q345C,Q3455D
ASTM A36ASTM A572 Gr50
EN10025: S235JR, S235J0,S235J2EN10025: S355JR, S355J0,S355J2
3. Design Wind SpeedUp to 250 km/h
4. Allowable deflection0.5 ~1.0 degree @ operational speed
5. Tension strength (Mpa)360~510470~630
6. Yield strength (t≤16mm) (Mpa)355235
7. Elongation (%)2024
8. Impact strength KV (J)27(20°C)---Q235B(S235JR)27(20°C)---Q345B(S355JR)
27(0°C)---Q235C(S235J0)27(0°C)---Q345C(S355J0)
27(-20°C)---Q235D(S235J2)27(-20°C)---Q345D(S355J2)
Bolts & Nuts
9. GradeGrade 4.8, 6.8, 8.8
10. Standards for mechanical properties
10.1 BoltsISO 898-1
10.2 NutsISO 898-2
10.3 WashersISO 6507-1
11. Standards for Dimensions
11.1 BoltsDIN7990, DIN931, DIN933
11.2 NutsISO4032, ISO4034
11.3 WashersDIN7989, DIN127B, ISO7091
Welding
12. MethodCO2 Shielded Arc Welding & Submerged Arc Welding(SAW)
13. StandardAWS D1.1
Marking
14. Method of marking of the membersHydraulic Press Stamping
Galvanizing
15. Galvanization standard of steel sectionsISO 1461 or ASTM A123
16. Galvanization standard of bolts and nutsISO 1461 or ASTM A153
Test
17. Factory testTensile test,Elements analysis, Sharpy test(impact test), Cold Bending,
 Preece test,Hammer test
Capacity
18. Maximum Production Capacity 50,000 TON per annum
